PrimeCor
Zero

UAS safety monitoring and management system.

PrimeCor
Zero

UAS safety monitoring and management system.

Improves operational reliability.

PrimeCor Zero offers geolocation, detection and avoidance, system monitoring, autonomous contingency planning, and fleet-level management.

Fast and simple integration.

PrimeCor Zero is an easy set-up solution with safe UX during flight.

Features

The design of PrimeCor Zero is aligned with the European DRI Standard (prEN 4709-002), MoC Light UAS.2511 and MoC Light-UAS.2512, which makes it an enabling solution for the use of UAVs throughout the European framework.

Ícono de fiabilidad operativa de la solución PrimeCor
Parachute recovery systems

It facilitates safe flight termination and emergency landing as an independent system of the Primary Flight Control System.

ícono de recuperación de paracaídas de la solución PrimeCor
Enhanced containment

System that maintains the UAS in its area of operation.

Ícono de caja negra de la solución PrimeCor
Black box

PrimeCor Zero provides a data logging feature to facilitate reliable incident assessment.

Imagen del producto PrimeCor ERU 1

Applications

Ícono de Drone delivery de la solución PrimeCor

Drone
delivery

Envío de bienes de primera necesidad de la solución PrimeCor

Shipment of
medicines and
staple goods

Icono de gestión de tráfico de la solución PrimeCor

Traffic management

Ícono de búsqueda y rescate de la solución PrimeCor

Search
and rescue

Ícono de seguridad y vigilancia de la solución PrimeCor

Safety and
surveillance

Ícono de gestión de emergencias de la solución PrimeCor

Emergency
management

Ícono de agricultura de precisión de la solución PrimeCor

Precision
farming

Íconos de uso Zero 8 de la solución PrimeCor

Infrastructure
inspection

Ícono de fotografía y vídeo aéreo de la solución PrimeCor

Aerial photography
and video

Safe-By-Design

PrimeCor Zero components

PrimeCor TCU (Tracker & Communication Unit)

PrimeCor PMUs (Power Magament Units)

PrimeCor ERU (Emergency Recovery Unit)

Virtual S-GCS (Virtual Safety Ground Control Station)

UAS - Dron de la solución Primecor Zero


TCU
Tracker &
Communication
Module



PMUs
Power Magament

Units

PMUs
Power Magament

Units

PMUs
Power Magament

Units

PMUs
Power Magament

Units

ERU
Emergency

Recovery Unit

ERU

EMERGENCY
RECOVERY
UNIT

Communication protocol

  • MAVLink

Sensors and receivers

  • 2x 6-axis IMU
  • 1x barometer
  • 1x magnetometer
  • 1x temperature sensor

Interfaces

  • 12x ADC inputs
  • 2x CAN BUS
  • 12x CAP-PWM
  • 3x UART
  • 14x GPIO
  • 1x RS232

Storage

  • Internal SD card

Power input

  • Dual 5 – 28 V DC

Compatible radios

  • 433, 868, 900 MHz radios, and UART, RS232 interfaces

Maximum power

  • 2 W

Temperature operation

  • -20 to 50 ºC

Weight

  • 60 g

dimensiones eru

Imagen de EMERGENCY RECOVERY UNIT

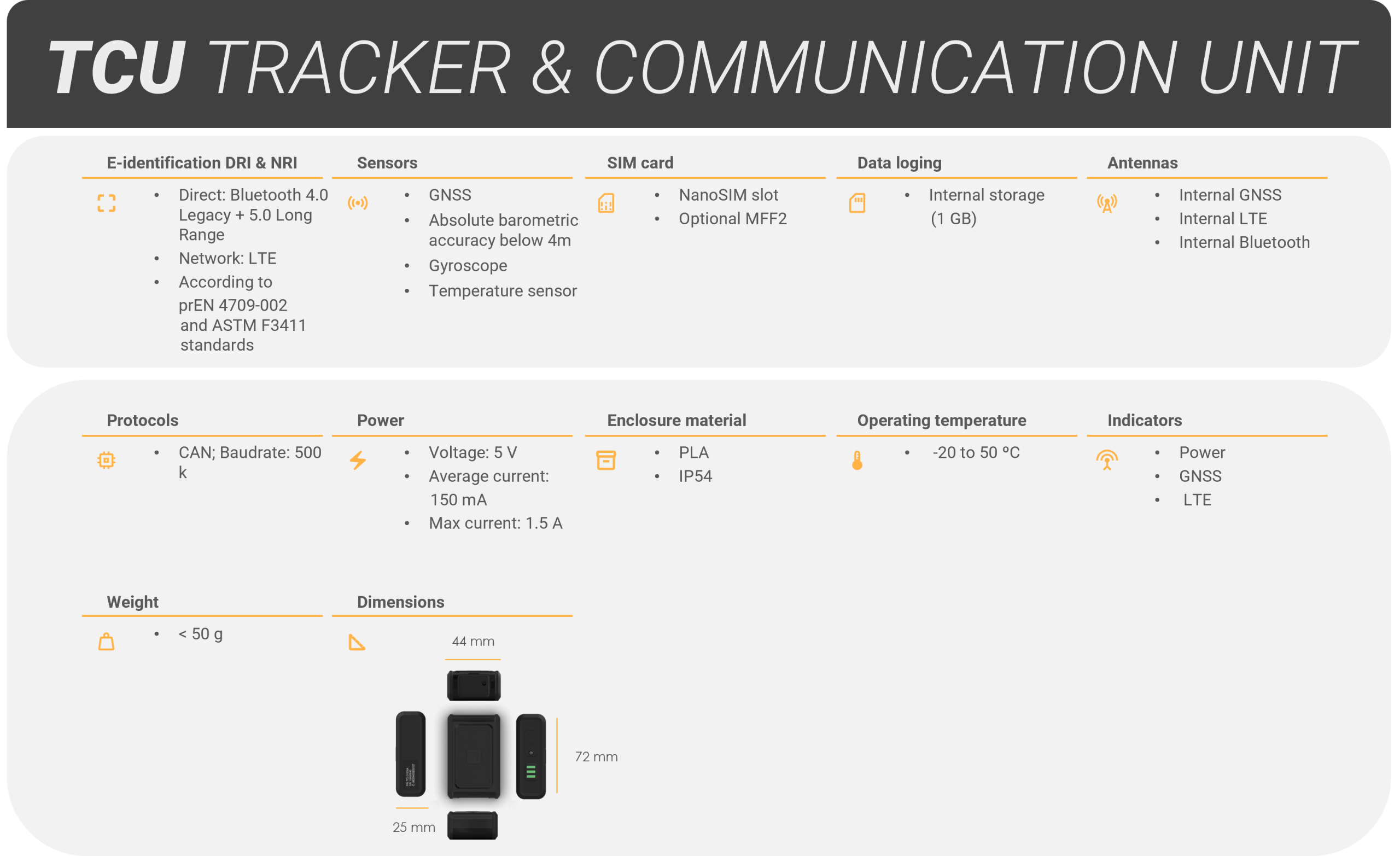

TCU

TRACKER &
COMMUNICATION
UNIT

E-identification DRI & NRI

  • Direct: Bluetooth 4.0 Legacy + 5.0 Long Range
  • Network: LTE
  • Standard: According to prEN 4709-002 and ASTM F3411 standards

Sensors

  • GNSS
  • Barometer
    • Absolute Accuracy
      • Below 4m altitude
  • Gyroscope
  • Temperature sensor

SIM card

  • NanoSIM slot

  • Optional MFF2

Data loging

  • Internal storage (1 GB)

Antennas

  • Internal GNSS

  • Internal LTE

  • Internal Bluetooth

Protocols

  • CAN: Baudrate: 500 k

Power

  • Voltage: 5 V

  • Average current: 150 mA

  • Max current: 1.5 A

Enclosure material

  • ABS

  • IP64

Operating temperature

  • -20 to 60 ºC

Indicators

  • Power

  • GNSS

  • LTE

Weight

  • < 45 g

DIMENSIONES TCU

Solución PrimeCor Enhanced Containment

PMU

POWER
MANAGEMENT
UNITS

On/Off input

  • Digital signal 3.3 V/ 5 V

Operating voltage

  • 5 V

Maximum measuring current

  • 30 A

Maximum voltage (power line)

  • 48 V

Wire max

  • 14 AGW

Analog output voltage measurement

  • 0-4.5 V

Current measurement resolution

  • 0 .15 V/A

Temperature operation

  • -20 to 50 ºC

Dimensions two channels

  • Width: 44 mm
  • Height: 51 mm

Dimensions four channels

  • Width: 72 mm
  • Height: 51 mm

Imagen POWER MANAGEMENT UNITS
